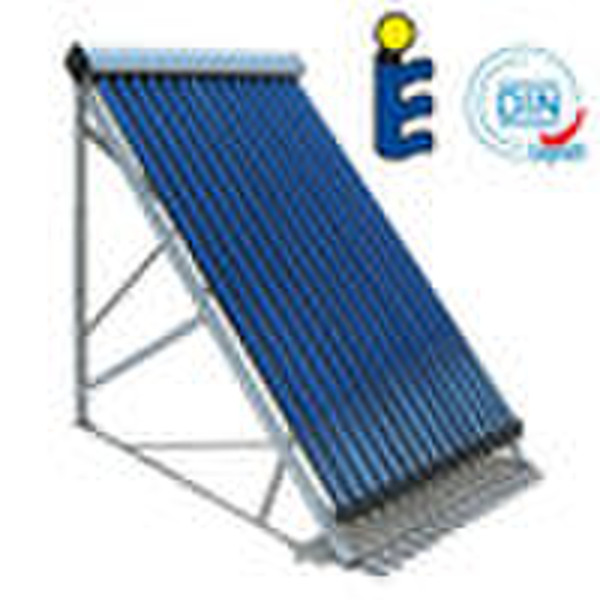

Solar Collector(Solar keymark)

Solar Collector Heat Pipe Solar Collector are always connected with existing heating supply device, the selective coating on the inner cover or the evacuated tubes converts solar energy into heat energy and transfers heat to the heat pipes by aluminum Fins. With exposure to sunlight, the liquid in the heat pipe changes into vapour which rises to the condenser. Then heated liquid come through flow channel and come to copper pipe in a pressure tank or heating device for heat exchange. This process is a continuous circulation as long as the collector is heated by sun. Model typeJNSC-15JNSC-18JNSC-20JNSC-24ConstructionEvacuated tube solar collectorNo. of collector pipes15182024Tube diameter(OD)Outer tube: 58mm; Inner tube: 47mmPanel area(m2)2.52.953.243.84Absorber surface(m2)1.221.461.621.94L×W×H(mm)1975×1268×1351975×1493×1351975×1643×1351975×1943×135Weight(Kg)4857.66476.8Fluid content(L)1.11.31.441.6Angle of inclination45oTest pressure6 BarManifold connection diameter3/4''Component material specificationBorosilicate glass/red copper/glasswall with polyurethane insulation
